Vidmar steel drawer dividers, partitions, and plastic bins for high-density small-parts storage. Order in any quantity, drop-shipped freight-free to the contiguous 48 states.
Shop/Accessories
How ordering works: prices below are built from Vidmar’s current published list pricing, freight included. Add parts to your RFQ list and send it in one click, we confirm availability and respond same-day with a firm, dealer-priced quote. Price match guaranteed.
Vidmar Quick Ship · ships within 10 days
Steel dividers run between partitions to subdivide a drawer into compartments, and can be moved and rearranged any time. Match the divider height to your drawer model with the chart, then build your order with the picker. Dividers 9½″ and longer include screws for fastening to the drawer bottom.
| Fits drawer model | ||||
|---|---|---|---|---|
| 20 & 25 | 30 & 35 | 40 & 45 | 50–100 | |
| Divider height | ||||
| 1⅞″ | 2⅞″ | 4½″ | 5¼″ | |
| Length* / spaces | Divider part number | |||
*Usable compartment width is approximately 3⁄8″ less than divider length. Full-depth 253⁄8″ straight dividers (DS series), aluminum dividers, and 25-packs are available, ask us.
Partitions span the full width or depth of a drawer, they slide into slots on the drawer walls and fasten to the drawer bottom at prepunched locations (hardware included). Set partitions first, then run dividers between them to build the compartment grid.
| Part No. | Length | Fits drawer model | Lead time | Price | Qty |
|---|
25½″ partitions span a standard-width drawer side-to-side; 19″ partitions run front-to-back in shallow (21⅜″-deep) drawers; 40½″ and 55⅝″ partitions fit extra-wide and double-wide drawers. Other lengths and 10-packs available on request.
Vidmar Quick Ship · ships within 10 days

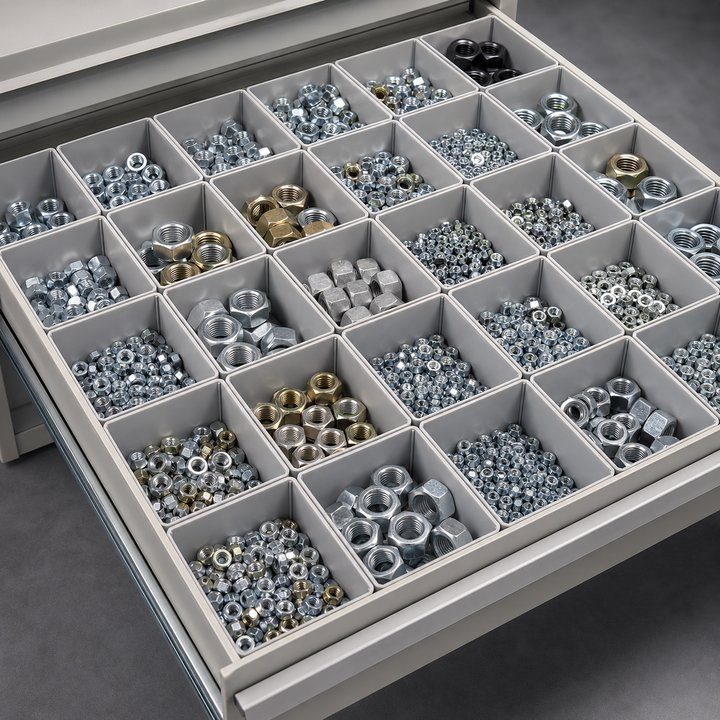

Drop-in plastic bins create removable sub-compartments, lift the bin out for easy handling, issuing, and counting. In any drawer using bins, Vidmar recommends installing a single side-to-side partition. Snap-on bin label holders (BLH02) are available on request.
| Part No. | Dimensions (H × W × D) | Fits drawer model | Max per drawer | Price | Qty |
|---|
Slot a divider into a bin to split it into smaller compartments. Sold individually.
| Part No. | Fits bins | Type | Price | Qty |
|---|
Accessories ship small-parcel from the manufacturer, freight-free to the contiguous 48 states. Steel dividers, standard 25½″ partitions, and plastic bins are in Vidmar’s Quick Ship program and typically ship within 10 days; other partition lengths are made to order.
Vidmar drawer interiors build up in three layers. Partitions go in first: they span the full width or depth of the drawer, slide into slots on the drawer walls, and fasten to prepunched holes in the drawer bottom. Dividers then run between the partitions, creating an X-Y compartment grid you can rearrange any time inventory changes. Inside that grid, you can store parts directly in the steel compartments or drop in plastic bins to create removable sub-compartments that travel with the parts.
Divider and partition height needs to match the drawer model: Models 20 and 25 take 1⅞″ hardware, Models 30 and 35 take 2⅞″, Models 40 and 45 take 4½″, and Model 50 and up take 5¼″. Every drawer’s model number is listed on our cabinet spec cards and in the configurator, if you’re not sure what you have, send us the cabinet model and we’ll match the hardware.
Three layout patterns cover most cases:
A few sizing rules of thumb: usable compartment width is about 3⁄8″ less than divider length; dividers 9½″ and longer come with screws for fastening to the drawer bottom; and bins stack densely, a standard-width Model 20 or 25 drawer holds up to 64 of the smallest bin.
The catalog goes deeper than this page: ESD/StaticGard dividers and conductive bins, quarter trays, groove trays for elongated parts, snap-on label holders, and drawer-bottom mats are all available. If you’re outfitting an entire drawer or cabinet, send us your part list and drawer sizes and we’ll come back with a complete layout and parts list.
Send us your cabinet model and what you’re storing, we’ll spec a partition, divider, and bin layout to your exact drawer dimensions, with a firm dealer-priced quote.
